Print
Printing Technology: PrecisionCore TFP Print Head
Maximum Print Resolution: 2880 x 1440 dpi; 1440 x 1440 dpi; 1440 x 720 dpi;
Print Speed:
16" x 20" prints from 2:02 to 6:58; Production is 4:16
20" x 30" prints from 3:40 to 12:25; Production is 7:36
40" x 60" prints from 11:15 to 40:05; Production is 24:20
Nozzle Configuration: Colour and Monochrome; 360 nozzles x 10
Ink

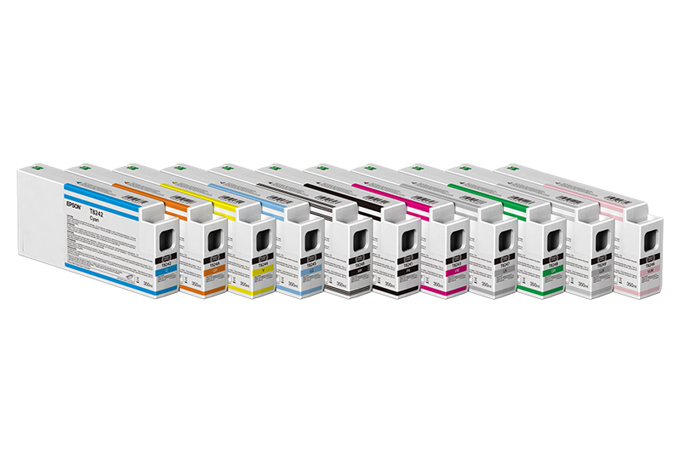

Ink Type: Epson UltraChrome HDX pigment inks, 11-ink, 10-colour
Fade Resistance/Print Longevity:
Colour, up to 200 years
Black-and-White, up to 400 years
General
Operating Systems:
Apple macOS® 10.13.x-10.12.x, OS X®: 10.11x-10.7x
Microsoft® Windows®: 10, 8.1, 7 (32-bit, 64-bit)
Temperature: 65° to 75°F (18° to 24°C)
Humidity: 40 to 60% (no condensation)
Dimensions: 54" x 26" x 48" (L x W x H)
Weight: 223 lbs (101 kg)
Ink Supply System
Ink Supply Fill Volume: 150 ml, 350 ml, or 700 ml each x 11 colours total
Ink Shelf Life: 2 years from printed production date or 6 months after open
Printable Area and Accuracy
Maximum Paper Width: 24"
Minimum Cut-sheet Size: 8.5" x 11"
Line Accuracy: +/- 0.2% of specified length (+/- .26mm minimum)
Maximum Printable Length: 529"
